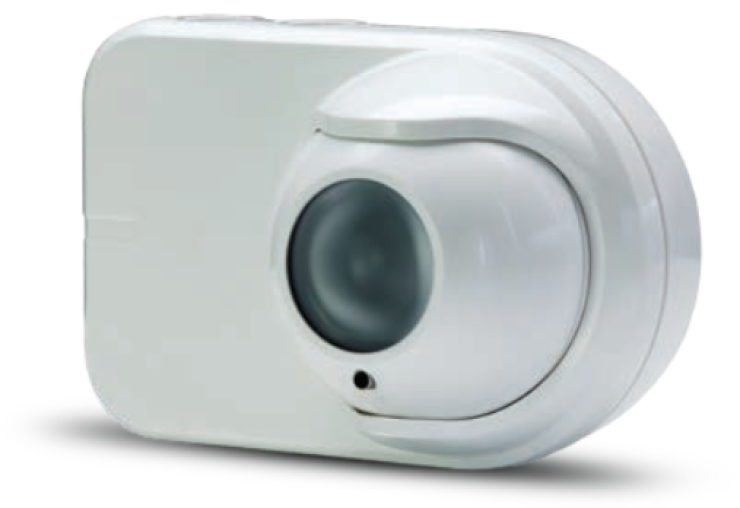

OSID-DE – Open-Area Smoke Imaging Detection System

The OSID-DE by Xtralis is an advanced open-area smoke imaging detection system designed to provide early-warning smoke detection in large spaces. Using dual-wavelength (UV & IR) projected beams and CMOS optical imaging, it delivers superior accuracy, high stability, and excellent immunity to false alarms commonly caused by dust, sunlight, vibrations, or building movements.
It is built for applications where traditional smoke detectors fail due to height, airflow, or challenging environmental conditions.

Where It Can Be Used?

The OSID-DE system is ideal for large, open spaces where point-type detectors are impractical or difficult to maintain. Common applications include:

• Airports, railway stations, and transportation hubs
• Warehouses, logistics centers, and industrial facilities
• Malls, auditoriums, convention halls, and exhibition centers
• Power plants, manufacturing units, and high-ceiling buildings
• Heritage structures, atriums, and long tunnels
• Large commercial buildings and IT campuses

Its wide coverage and tolerance to dust, misalignment, and building shifts make it one of the most reliable smoke detection solutions for demanding environments.

OSID-DE – Open-Area Smoke Imaging Detection System

The OSID-DE system uses a combination of Emitters and a central Imager to create projected beams across an area. Each Emitter sends synchronized UV and IR light signals, which the Imager continuously monitors. By analyzing how smoke affects each wavelength, OSID-DE accurately distinguishes smoke from dust, insects, and other obstructions.
The CMOS imaging technology gives the Imager a wide field of view, enabling it to track up to seven Emitters without requiring precise alignment. Automatic commissioning, DIP switch configuration, onboard event memory, and optional heater modules further simplify installation and operation.
It is a cost-effective and highly reliable solution for early fire detection in complex or high-risk environments.

Advantages

• Detects smoke over long distances (up to 200 m depending on model)
• Dual-wavelength UV/IR analysis prevents false alarms
• CMOS optical imaging ensures wide viewing angles and multi-Emitter tracking
• No need for precise alignment – tolerates structural movement
• High immunity to dust, steam, sunlight, and solid obstructions
• Auto-commissioning completes setup in under 10 minutes
• Minimal maintenance – only periodic cleaning required
• Onboard event log stores 10,000 events for diagnostics
• Battery-powered Emitters reduce wiring complexity
• Simple field configuration via DIP switches
• Three selectable alarm thresholds for different environments

Areas We Serve

Fire Projects Pvt. Ltd. supplies, installs, and commissions OSID-DE systems across Gujarat, including:

Ahmedabad | Vadodara | Gandhinagar | Sanand | Halol | Dahej | Vapi | Ankleshwar | Surat | Bharuch

We support all industries such as manufacturing, logistics, petrochemicals, healthcare, commercial buildings, IT parks, and corporate infrastructure.

Why Choose Fire Projects Pvt. Ltd.?

Fire Projects Pvt. Ltd. provides end-to-end fire safety solutions using world-class detection technologies like Xtralis OSID-DE. Our team ensures precise system design, smooth installation, and ongoing service support to keep your facility compliant and protected.
We deliver trusted, efficient, and future-ready fire detection systems that meet global standards.

Contact us:+91 98244 42333 |Email:- info@fireprojects.co.in
