VARIODYN D1 – Digital Call Station DCS plus

The VARIODYN D1 Digital Call Station DCS plus is a professional paging and voice evacuation control unit designed for clear, reliable, and secure communication during emergencies. It enables operators to select loudspeaker circuits, deliver live voice announcements, and trigger pre-recorded gongs or alarm signals. With redundant transmission capability and EN54-16 approval, it ensures high operational safety and continuous performance in critical situations.

Where It Can Be Used?

The DCS plus is ideal for facilities that require structured voice evacuation and public address control across multiple zones. It is commonly installed in:

• Airports and metro stations
• Hospitals and healthcare facilities
• Shopping malls and commercial complexes
• Industrial plants and manufacturing units
• Educational institutions and universities
• Hotels and large corporate offices

With support for up to 20 km fibre-optic connectivity, it is suitable for both compact buildings and large campus-style infrastructures.

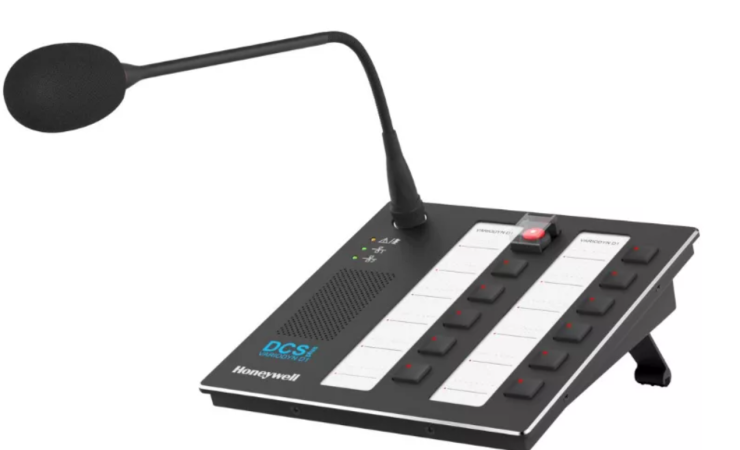

VARIODYN D1 Digital Call Station DCS plus

The DCS plus Digital Call Station is a high-performance communication interface designed for seamless integration with VARIODYN D1 DOM and Comprio control systems. Connected via cost-effective CAT5 cabling, it transmits control signals, power supply, and up to four simultaneous audio channels.

It features 12 freely configurable keys with programmable LEDs, allowing customized zone selection and function control. The station includes a high-quality electret gooseneck microphone with cardioid pattern for precise voice pickup, along with a built-in loudspeaker for live monitoring and intercom communication between paging stations.

For expanded functionality, the DCS plus supports up to six DKM plus digital keyboard modules, increasing the total number of programmable keys and LEDs to 120 per station. The microphone and cable connections are continuously monitored to ensure reliability and system integrity.

Advantages

• Redundant transmission route for maximum failure safety
• Cost-effective CAT5 connectivity
• Supports fibre-optic connection up to 20 km
• Permanent monitoring of microphone and cable
• Built-in loudspeaker for monitoring and intercom
• Expandable up to 120 programmable keys
• Independent external audio input and output
• EN54-16 approved for voice evacuation systems
• Mechanical protection against accidental cable disconnection
