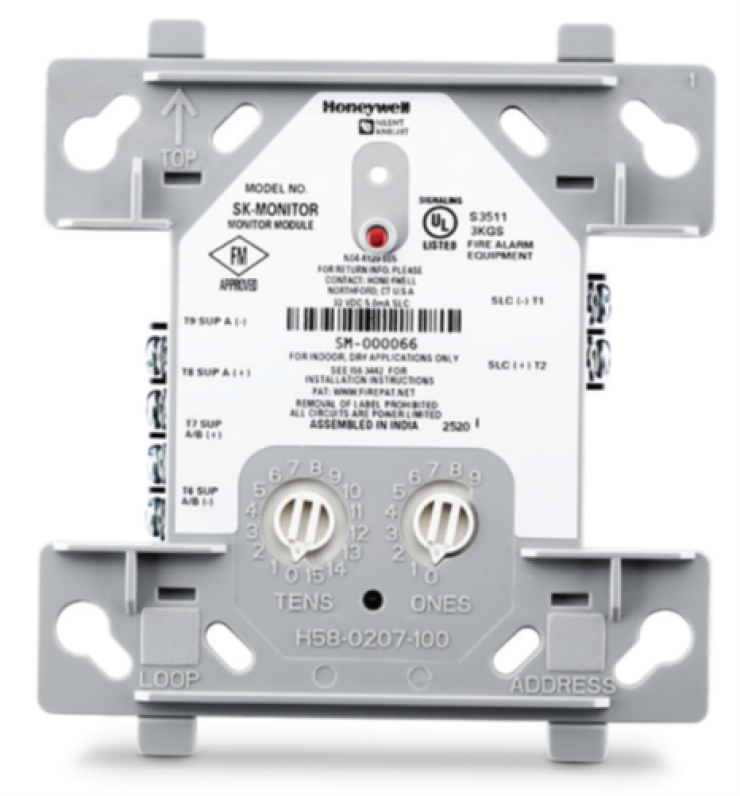

Honeywell Silent Knight SK-MONITOR Addressable Monitor Module

The Honeywell Silent Knight SK-MONITOR is an addressable monitor module designed to interface conventional contact devices with Silent Knight Series Fire Alarm Control Panels (FACPs). Its main purpose is to monitor normally open contact devices such as waterflow switches, pull stations, and other dry contact inputs, transmitting their status directly to the fire alarm panel through the SLC loop. It also allows monitoring of conventional 4-wire smoke detectors for alarm and trouble conditions.

Where It Can Be Used?

The SK-MONITOR is ideal for installations where conventional devices need to be integrated into an addressable fire alarm system. It is widely used in:

• Commercial buildings and corporate offices
• Industrial plants and warehouses
• Hospitals and healthcare facilities
• Educational institutions
• Hotels and residential complexes
• Manufacturing and process industries

It is compatible with Honeywell Silent Knight 6808U, 6820U, and 6820UEVS fire alarm control panels.

SK-MONITOR Addressable Monitor Module

The SK-MONITOR is engineered to provide reliable supervision of contact devices on an SLC loop. It supports both Class A and Class B supervised wiring, ensuring flexibility in system design. The module isolates short circuits on the SLC loop, protecting other connected devices so the system continues operating during a fault condition.

Designed for easy installation, it mounts directly into a standard 4” square electrical box with a minimum depth of 2-1/8”. For surface mounting, the SMB500 4” square electrical box is available. The panel-controlled LED indicator flashes green during normal operation and turns solid red during alarm, allowing quick visual identification.

With UL Listing and FM Approval, the SK-MONITOR meets strict safety and compliance standards, making it suitable for mission-critical fire detection systems.

Advantages

• Supports Class A and Class B supervised wiring
• Monitors conventional 4-wire smoke detectors
• Short circuit isolation on SLC loop
• Protects other devices during loop faults
• Panel-controlled status LED indication
• Easy installation with SEMS screws
• Compatible with Silent Knight addressable panels
• UL Listed and FM Approved
• Compact and lightweight design
