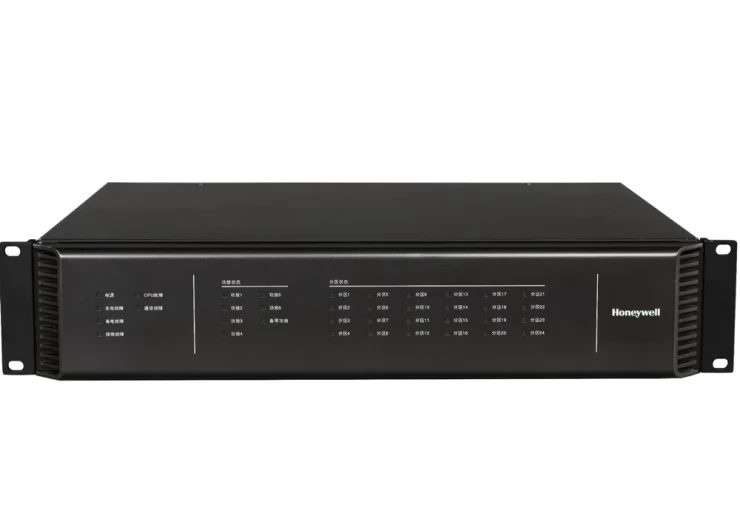

Honeywell HEX-24 INTEVIO 24-Zone Expander

The Honeywell HEX-24 INTEVIO 24-Zone Expander is designed to significantly expand the zoning capability of the INTEVIO Public Address and Voice Alarm system. Its primary purpose is to add up to 24 loudspeaker zones with centralized control, high power handling, and system supervision. The HEX-24 ensures reliable voice alarm and public address operation, even during controller CPU failure, enhancing overall life-safety and system availability.

Where It Can Be Used?

The HEX-24 is ideal for large single-building installations where extensive zoning is required. It is widely used in airports, hospitals, metro stations, shopping malls, convention centers, hotels, educational campuses, industrial plants, warehouses, and high-rise commercial buildings. The expander is particularly suitable for facilities that require clear zone-wise announcements and emergency evacuation messaging using the INTEVIO platform.

Honeywell HEX-24 INTEVIO 24-Zone Expander

The HEX-24 is a zone expansion device controlled by the HCU-2000 controller, designed to extend the INTEVIO system by 24 speaker zones and 24 dry contact inputs. It supports single-channel audio operation and allows connection of up to six main power amplifiers and one backup amplifier, offering a flexible one-for-all amplifier backup configuration.

Each zone supports a maximum loudspeaker load of 500W, making the HEX-24 suitable for large-scale audio distribution. The unit includes automatic fault diagnosis, continuously monitoring main power, backup power, CPU status, amplifiers, speaker lines, grounding, contact inputs, and network communication. All fault conditions are clearly displayed via front-panel LED indicators.

In the event of controller CPU failure, the HEX-24 can operate in standalone mode, delivering audio from an external line input directly to local zones. This ensures uninterrupted announcements and increased safety during emergencies.

Advantages

• Expands INTEVIO systems with up to 24 speaker zones
• Maintains announcements even during controller CPU failure
• High power handling for large speaker circuits
• Flexible amplifier backup improves system reliability
• Automatic fault monitoring enhances safety
• Reduces system downtime during emergencies
• Ideal for large and complex buildings

Areas We Serve

Fire Projects Pvt. Ltd. supplies, installs, and commissions Honeywell INTEVIO HEX-24 24-Zone Expanders across Gujarat and major regions of India, including Ahmedabad, Vadodara, Surat, Rajkot, Vapi, Ankleshwar, Dahej, Sanand, Halol, Bharuch, and Gandhinagar. We serve commercial, infrastructure, healthcare, hospitality, and industrial voice alarm projects.

Why Choose Fire Projects Pvt. Ltd.?

Fire Projects Pvt. Ltd. is a trusted integrator of Honeywell Voice Alarm and Life Safety Systems. We provide complete solutions—from system design and product supply to installation, commissioning, testing, and AMC services. Our team ensures EN54-compliant, reliable, and future-ready fire and voice alarm systems tailored to your project needs.

Contact Us: +91 98244 42333 || info@fireprojects.co.in
