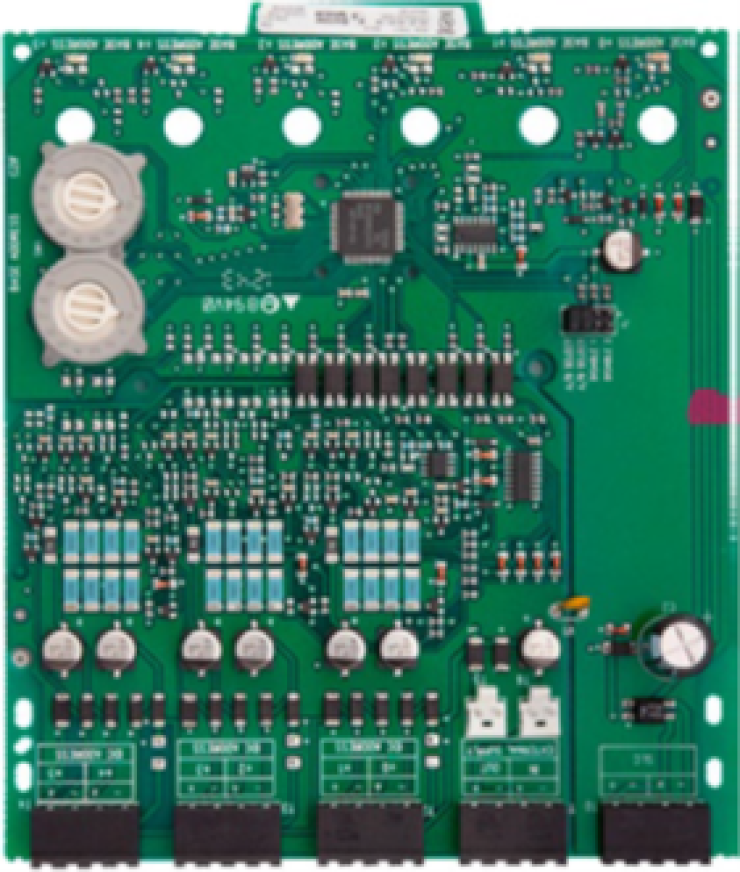

IDP-ZONE-6 Six Zone Interface Module

The IDP-ZONE-6 is an advanced addressable zone interface module designed for Honeywell Farenhyt Series fire alarm control panels (FACPs). It converts conventional two-wire loops into addressable signaling line circuits (SLC), enabling seamless integration of existing conventional detectors with modern Farenhyt panels. This makes retrofitting existing buildings simple, efficient, and cost-effective.

Where It Can Be Used?

The IDP-ZONE-6 is ideal for commercial buildings, educational institutions, healthcare facilities, industrial complexes, and residential projects where conventional two-wire smoke detectors are already installed. It allows these detectors to communicate with Farenhyt FACPs, ensuring reliable fire monitoring while avoiding the need to replace existing devices. The module fits into the IDP-ACB cabinet, which can house up to two IDP-ZONE-6 modules for flexible installation.

IDP-ZONE-6 Six Zone Interface Module

The IDP-ZONE-6 provides six individually supervised zone inputs and supports Class A and Class B wiring. Each input operates independently but shares a common SLC line and external power supply, enabling accurate reporting of detector status as normal, open, or alarm. Up to two unused inputs can be disabled to optimize system configuration. With features like rotary address switches and LED indicators for each relay contact, installation and monitoring are simplified. The module is UL, CSFM, and MEA listed, ensuring top-level compliance and reliability.

Advantages

• Converts conventional two-wire loops to addressable SLC loops
• Supports six fully supervised zone inputs
• Compatible with Class B and Class A wiring
• Individual LED indicators for each relay contact
• Removable 12–18 AWG plug-in terminal blocks for easy installation
• Can disable up to two unused inputs for flexibility
• Rotary address switches for fast setup
• Compact design fits IDP-ACB cabinet
• UL, CSFM, and MEA approved

Areas We Serve

Fire Projects Pvt. Ltd. installs and services the IDP-ZONE-6 across Gujarat, including cities like Ahmedabad, Vadodara, Halol, Sanand, Vapi, Ankleshwar, and Dahej. Our solutions cover industries such as commercial complexes, hospitals, schools, industrial plants, and IT parks, ensuring robust fire safety monitoring with existing infrastructure.

Why Choose Fire Projects Pvt. Ltd.?

We provide end-to-end fire safety solutions tailored to your facility. From system design and installation to commissioning and after-sales service, Fire Projects Pvt. Ltd. ensures that your Farenhyt fire alarm systems are fully compliant, reliable, and future-ready. Our experienced team helps you integrate advanced modules like the IDP-ZONE-6 efficiently, minimizing downtime and installation costs.

Contact Us: +91 98244 42333 | Email info@fireprojects.co.in
