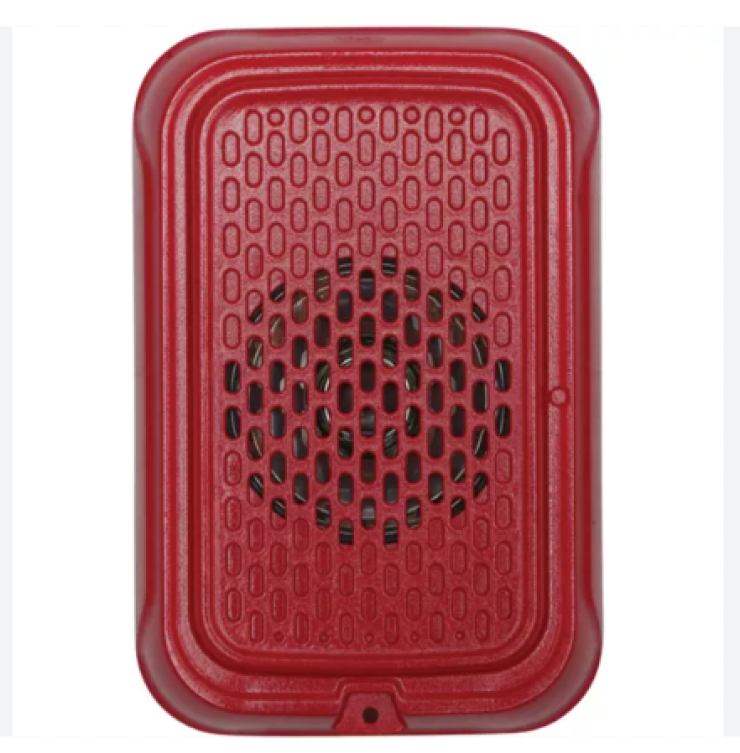

Notifier - Conventional Sounder/Horn HRL

Conventional Sounder/Horn

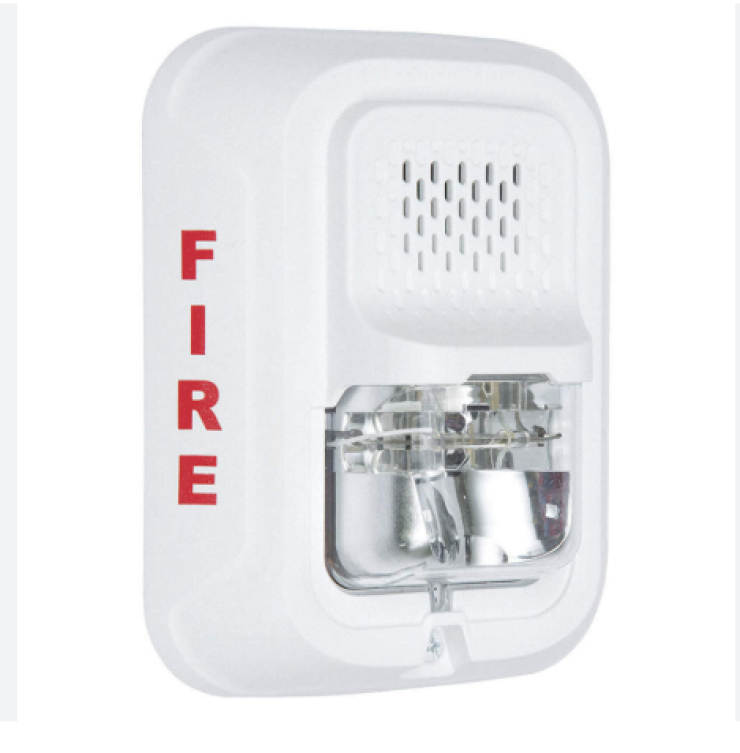

Fire Projects recommend L-Series offers the most versatile and easy-to-use line of horns, strobes, and horn strobes in the industry with lower current draws and modern aesthetics. With white and red plastic housings, standard and compact devices, and plain, FIRE, and FUEGO-printed devices, System Sensor L-Series can meet virtually any application requirement.

Category: Fire Alarm & Detection System

The L-Series line of wall-mount horns, strobes, and horn strobes include a variety of features that increase their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the back box, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.

• Updated Modern Aesthetics

• Small profile devices for Horns and Horn Strobes

• Plug-in design with minimal intrusion into the back box

• Tamper-resistant construction

• Automatic selection of 12- or 24-volt operation at 15 and 30 candela

• Field-selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, and 185

• Horn rated at 88+ dBA at 16 volts

• Rotary switch for horn tone and two volume selections

• Mounting plate for all standard and all compact wall units

• Mounting plate shorting spring checks wiring continuity before device installation

• Electrically compatible with legacy Spectr Alert and Spectr Alert Advance devices

• Compatible with MDL3 sync module

• Strobes and Horn Strobes listed for wall mounting only

• Horns listed for wall or ceiling use

Standard Operating Temperature: 32°F to 120°F (0°C to 49°C)

Humidity Range: 10 to 93% non-condensing

Strobe Flash Rate: 1 flash per second

Nominal Voltage: Regulated 12 DC or regulated 24 DC/FWR1

Operating Voltage Range2: 8 to 17.5 V (12 V nominal) or 16 to 33 V (24 V nominal)

Operating Voltage Range MDL3 Sync Module: 8.5 to 17.5 V (12 V nominal) or 16.5 to 33 V (24 V nominal)

Input Terminal Wire Gauge: 12 to 18 AWG

Wall-Mount Dimensions (including lens): 5.6˝ L × 4.7˝ W × 1.91˝ D

Compact Wall-Mount Dimensions (including lens): 5.26” L x 3.46” W x 1.91” D

Horn Dimensions: 5.6˝ L × 4.7˝ W × 1.25˝ D

Compact Horn Dimensions: 5.25” L x 3.45” W x 1.25” D
