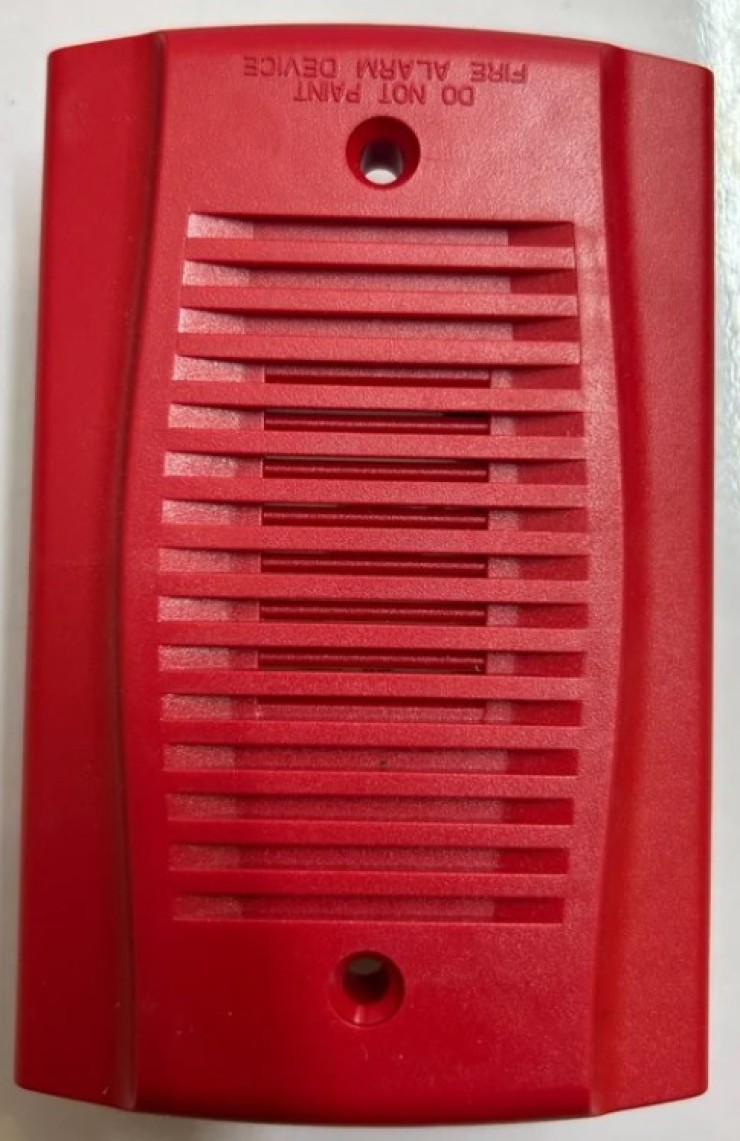

Morley-IAS by Honeywell - Mini-horn/Red MHR-1

Mini-horn/Red MHR-1

Fire Projects recommend System Sensor selectable output horns, strobes & horn strobes are rich with features guaranteed to reduce installation and maximize profits.

Category: Fire Alarm & Detection System

Fire Projects recommend System Sensor selectable output horns, strobes & horn strobes are rich with features guaranteed to reduce installation and maximize profits.

Mini-horns shall be a System Sensor Model MHR or MHW capable of operating at nominal 12 or 24VDC and shall mount to a deep single gang back

box. Minihorn shall be listed to Underwriter’s Laboratories Standard UL464 for fire protective signaling systems. Mini-horns shall operate between 32

and 120 degrees Fahrenheit from a regulated DC, or full-wave rectified, unfiltered power supply. When used with the Sync•Circuit™ Module, 12-volt

rated notification appliance circuit outputs shall operate between nine and 17.5 volts; 24-volt rated notification appliance circuit outputs shall operate

between 17 and 33 volts.

> Mounting plate included for compatibility with a wide range of back box sizes,

> Three field selectable candela settings: 15, 75, and 115,

> Easy to use rotary dials for selection of candela and horn settings,

> Built in synchronization feature keeps strobes in sync for up to 30 minutes,

> Strobes Listed to UL1638; Horns Listed to UL464,

> Horn settings on the horn strobe model include high and low volume, continuous or temporal 3 tone,

> Round trim ring available for ceiling mount applications,

> Universal Fire symbol is language independent,

> Trim plate allows mini horn to mount to a variety of backboxes and fit aesthetically with the horn strobe and strobe.

Electrical Specifications:

Standard Operating Temperature: 32°F to 120°F (0°C to 49°C)

Humidity Range: 10 to 93% non-condensing

Strobe Flash Rate: 1 flash per second

Nominal Voltage: Regulated or regulated 24 DC/FWR1

Operating Voltage Range2: 16 to 33 V (24 V nominal)

Input Terminal Wire Gauge: 14 to 18 AWG*

Strobe and horn strobes dimensions (including lens): 5.15" L x 5.0"Wx 1.5" D (131mmx 127mmx 38mm)

Ceiling trim ring dimensions (sold as a pack of 5): 6.8 " Dia / 1.5" depth (173mmdia / 1.5" depth)
