Morley-IAS by Honeywell - Manual Break-glass Call Point HM-MCP-GLASS-UL

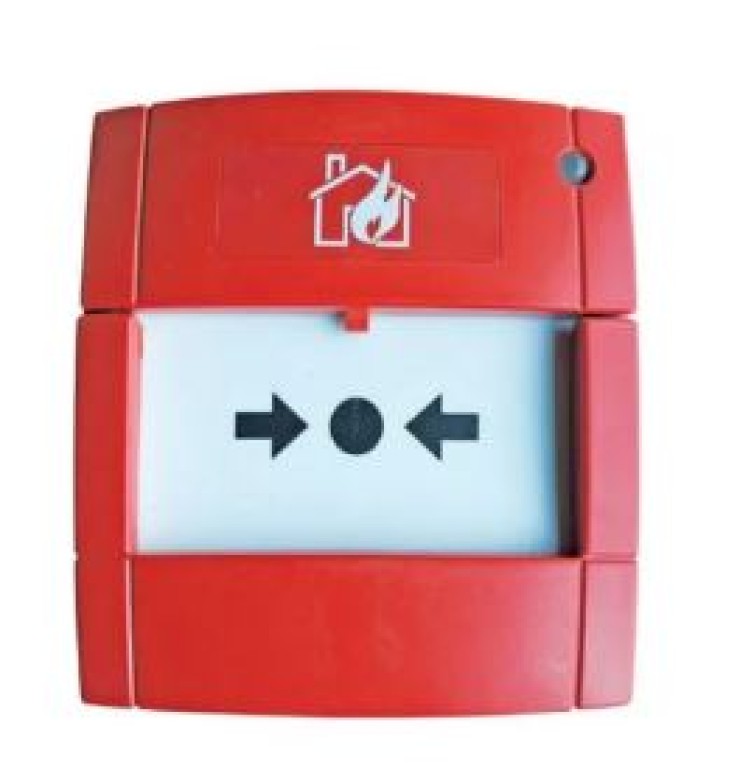

Manual Break-glass Call Point HM-MCP-GLASS-UL

Fire Projects recommend the HM-MCP-GLASS-ULis an addressable manual break glass call point which, as a simple rotary decade, switch at the rear of the unit for addressing.

Category: Fire Alarm & Detection System

Fire Projects recommend the HM-MCP-GLASS-ULis an addressable manual break glass call point which, as a simple rotary decade, switch at the rear of the unit for addressing.

A specialist test key may be inserted into the bottom of the unit to lower the glass and release the micro-switch – enabling a complete functionality test.

The HM-MCP-GLASS- UL call point is designed to provide a manual alarm interface to Morley IAS’s fire alarm control panel. Installation efficiency and compliance with the latest standards are at the heart of the call point range.

• Innovative “Plug and Play” installation concept

• Analogue addressable communications

• Integral LED

Mechanical Specifications:

Size: • Semi-flush mounting: 89 x 93 x 27.5 (W x H x D)

• Surface mounting: 89 x 93 x 59.5 (W x H x D)

Weight: 110g (3.8 oz.)

IP Rating: IP24D

Operating Temperature: 0°C to 49°C (32°F – 120°F)

Relative Humidity: 10% - 93% non-condensing

Electrical Specifications:

Operating Voltage: 15V to 32Vdc max

Current Consumption: Quiescent (without isolator) 385μA Alarm Current: 7.8 mA
