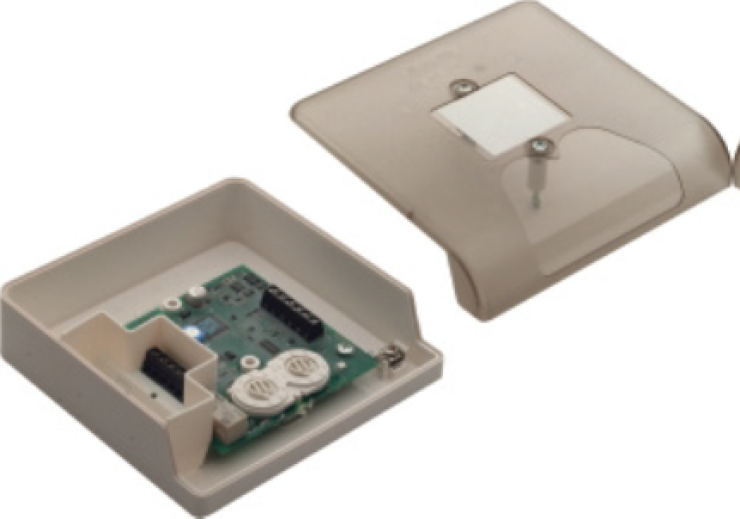

Addressable Output Modules MI-D240CMO
Free
Fire Project recommend the Morley-IAS MI-D240CMO, and MI-D240CMO-DIN control output modules are used with the Morley-IAS intelligent fire alarm control panels to provide management of 240Vac loads.
Fire Project recommend the Morley-IAS MI-D240CMO, and MI-D240CMO-DIN control output modules are used with the Morley-IAS intelligent fire alarm control panels to provide management of 240Vac loads.
The modules are loop powered devices controlling an unsupervised double pole relay output with one normally open and one normally closed contact. The output relay is a bistable device, latching in either the on or the off state on command from the fire alarm control panel.
Each module uses one of the ninety-nine possible module addresses available on a loop. It responds to regular polling from the control panel, indicated by a pulsing LED every successful communication. Each module is supplied with a built-in isolator for protection. However, to increase application flexibility individual isolators may be switched out as required.
• 240Vac mains switching
• DIN rail mounting option
• Surface mounting option
• Bi-colour LED status indication
• Built-in Short Circuit Isolators
• Visible Address selector switches
• Plug in connectors
• Approved to GEA GEI 1-082 and CEA GEI 1-084
Mechanical Specifications:
Dimensions (H x W x D):
MI-D240CMO: 134 x 139 x 40 mm
MI-D240CMO-DIN: 76 x 125 x 48 mm
Weight: 200g
Operating Temperature: -20 ºC to +60 ºC
Humidity: 0 to 95% maximum non-condensing
Electrical Specifications:
Operating voltage: 15 to 30 Vdc
Standby current:
1 comms every 5 seconds with LED blink: 445μA at 24 Vdc maximum
No comms: 275μA at 24 Vdc maximum
Output Rating: 5A at 30 Vdc, resistive load. 5A at 240 Vac, resistive load.
