Honeywell-ESSAR - OT Multi-sensor Fire Detector with Isolator 802373 - IQ8Quad

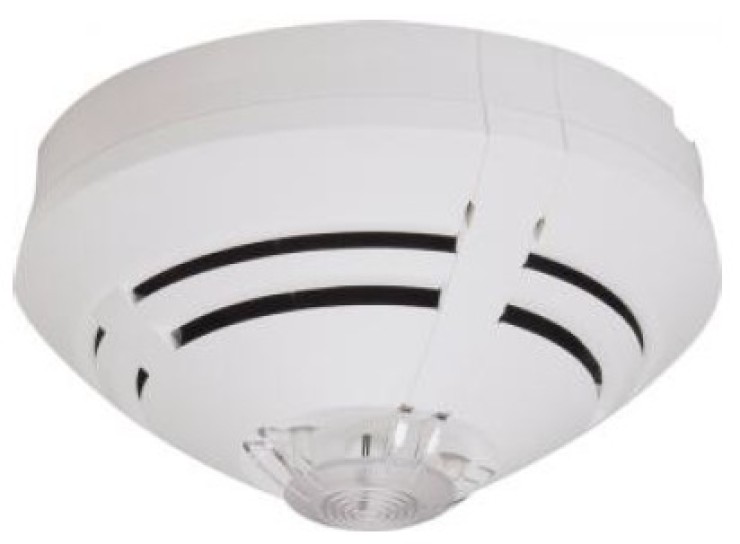

Multi-sensor Fire Detector with Isolator 802373 - IQ8Quad

Fire Projects recommend Multi sensor fire detector with integrated optical sensor and heat sensor which give both a combined signal as well as a separate heat signal for improved false alarm management, with time-controlled signal analysis and weighted data combination of both detector functions for detecting smoldering fires and fires with extreme heat generation.

Category: Fire Alarm & Detection System

Intelligent detector with decentralized intelligence, self-function test, CPU redundancy mode, automatic adaptation to the environments, alarm and operating data storage, alarm indication and soft addressing.

The loop isolator is integrated in the detector. A remote indicator is additionally attachable.

Common technical data:

Operating voltage: 8 ... 42 V DC

Quiescent current @ 19 V DC: 50 μA

Quiescent current @ FACP battery: approx. 280 μA

Area to be monitored: 110 m²

Height to be monitored: 12 m

Air velocity: 0 m/s ... 25.4 m/s

Application temperature: -20 °C ... 50 °C

Storage temperature: -25 °C ... 75 °C

Air humidity: < 95 %

Type of protection: IP 40 with base, up to IP 43 with base and option

Material: ABS plastic

Color: white, similar to RAL 9010

Weight: approx. 110 g

Detector specification: EN 54-7 /-5 A2 /-17:2005, CEA 4021

Dimensions: Ø: 117 mm H: 49 mm

Declaration of Performance: DoP-2011113070
