Honeywell-ESSAR - IQ8Alarm Plus/So Sounder, Red 807205R

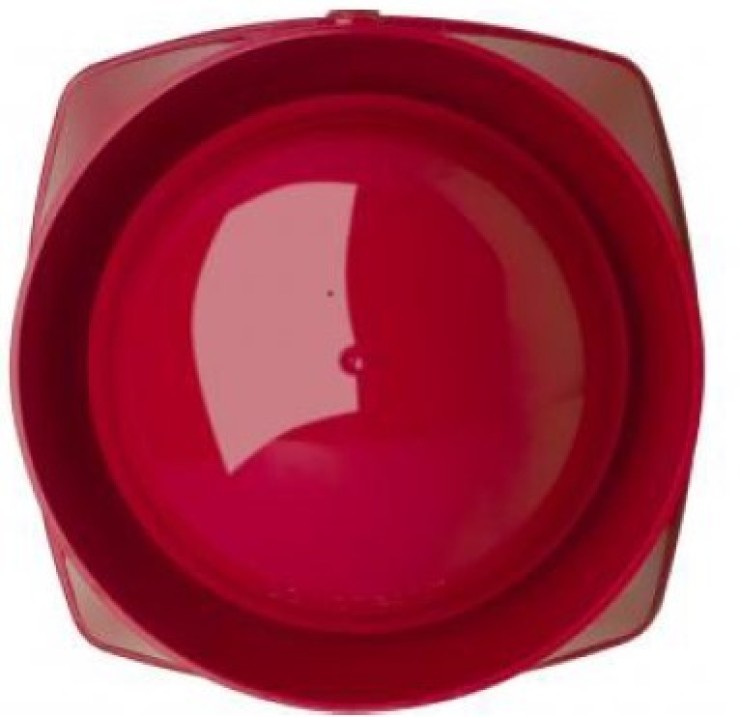

IQ8Alarm Plus/So Sounder, Red 807205R

Fire Projects recommend Addressable, completely bus supplied and short circuit / open circuit resilient fire alarm sounder in compliance with EN 54‑3 with integrated signaling tones for acoustic alarm signaling. With up to 20 different programmable signaling tones including DIN tone in accordance with DIN 33404 Part 3.

Category: Fire Alarm & Detection System

The volume can be set to 8 different levels. The load factor can be set to 2 different levels.

Signaling device with flat base, suitable for wall and ceiling mounting.

Optionally, IP base Part No. 806202 with side cable entry and weatherproof protection can be installed.

• Completely bus supplied alarm device

• Powered loop compatible

• Low power consumption

• Up to 64 alarm devices for each powered loop

• Each alarm device has built-in isolator

• Synchronous trigger

• EN 54-3 compliant

• High acoustic pressure

• Volume programmable in 8 steps via tools 8000

• 20 different signaling tones, including DIN tone

Common technical data:

Operating voltage: 14 ... 42 V DC (via powered loop)

Quiescent current @ 19 V DC: 55 μA

Quiescent current @ FACP battery: approx. 300 μA @ 42 V

Ambient temperature: -10 °C ... 55 °C

Storage temperature: -25 °C ... 75 °C

Air humidity: < 95 % (non-condensing)

Type of protection: IP 43 *2

Housing: Polycarbonate plastic

Color: red, similar to RAL 3020

Weight: approx. 300 g (with base)

Dimensions: Ø: 112 mm D: 78 mm

Declaration of Performance: DoP-21430171215
