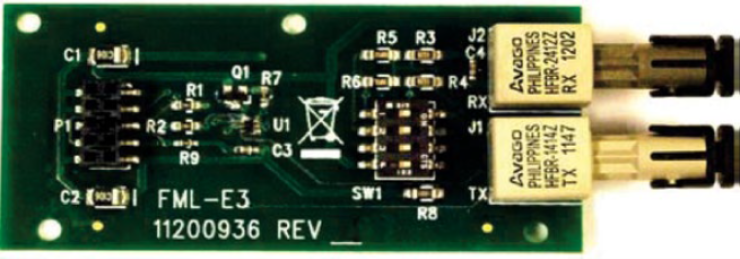

Farenhyt SK-FML Multi-Mode Fiber Optic Module

The Farenhyt SK-FML Fiber-Optic Multi-Mode Module is a plug-in fiber loop card designed to transmit and receive data between networked Farenhyt fire alarm panels. Connected through the SK-NIC (Network Interface Card), it ensures fast, interference-free communication across multiple panels in a fiber-optic network.
Engineered for multi-mode fiber, the SK-FML enhances system reliability, scalability, and signal integrity over long distances.

Where It Can Be Used
The SK-FML module is perfect for projects that require long-distance and interference-free communication between interconnected Farenhyt fire alarm panels. It is widely used in industrial facilities and manufacturing plants, airports and transportation hubs, hospitals and healthcare centers, educational campuses and universities, as well as large commercial complexes, business parks, high-rise, and mixed-use buildings. The module supports networking of up to 17 Farenhyt fire alarm panels, creating a robust and reliable backbone for fire alarm communication and annunciation across multiple sites.

Farenhyt SK-FML

The Farenhyt SK-FML module supports multi-mode fiber connections using ST-style connectors, allowing a maximum attenuation of 8 dB with 62.5/125 micrometer cable.
It plugs directly into the SK-NIC network card, enabling simplified installation and maintenance. Up to two fiber loop cards can be added per SK-NIC, allowing flexible configurations for networked systems.

Listed per ANSI/UL Standard 864, 9th Edition, the SK-FML ensures compliance with fire communication standards. When paired with the SK-NIC, it allows a common communication and annunciation link across multiple panels, delivering stable and reliable network performance.

Advantages

• UL 864, 9th Edition certified
• Simple plug-in installation on SK-NIC
• ST-style connectors for secure and easy fiber connection
• 8 dB attenuation with multi-mode fiber (62.5/125 µm)
• Supports two modules per SK-NIC
• Can be combined with SK-FSL single-mode modules on the same card
• Ensures interference-free, long-distance communication
• Reduces wiring complexity and electrical noise
• Cost-effective solution for large network installations

Areas We Serve

Fire Projects Pvt. Ltd. supplies, installs, and commissions Farenhyt SK-FML Multi-Mode Fiber Modules across Gujarat, including Ahmedabad, Vadodara, Sanand, Halol, Vapi, Ankleshwar, and Dahej.

We serve industries such as:

• Commercial buildings and IT parks
• Industrial and petrochemical plants
• Hospitals, schools, and universities
• Infrastructure and manufacturing sectors

Why Choose Fire Projects Pvt. Ltd.?

At Fire Projects Pvt. Ltd., we deliver certified and compliant fire alarm networking solutions using Farenhyt fire systems. Our team provides end-to-end services — from system design and installation to testing and maintenance.
We ensure every installation is reliable, standards-compliant, and optimized for long-term performance.
 Contact us: +91 98244 42333|Email: info@fireprojects.co.in |Website: www.fireprojects.co.in
