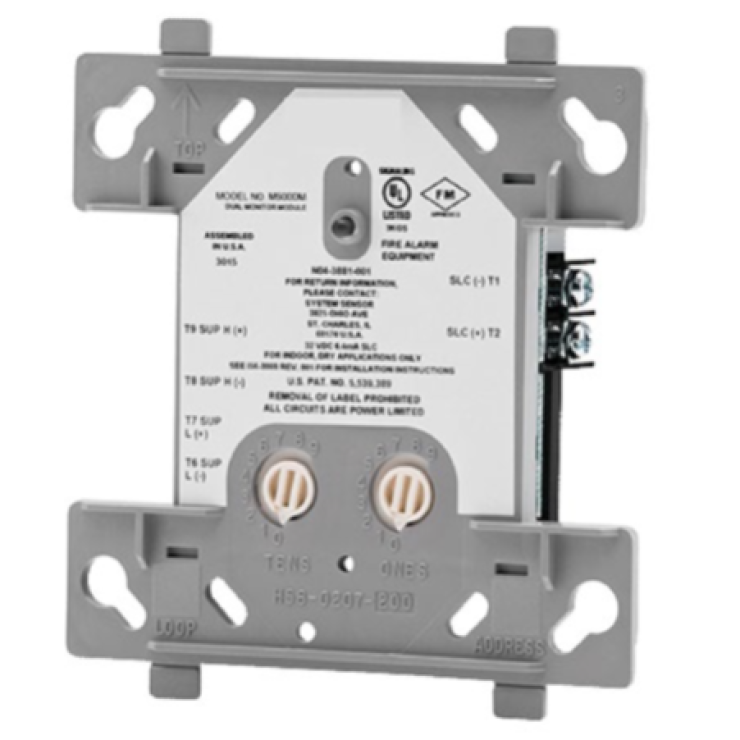

Farenhyt IDP-MONITOR-2 Addressable Dual Monitor Module

The Farenhyt IDP-MONITOR-2 Addressable Dual Monitor Module is designed to monitor two independent circuits with unique addresses, providing seamless integration with Farenhyt Series Fire Alarm Control Panels (FACPs). It acts as an intelligent interface between the control panel and contact devices such as waterflow switches, pull stations, or conventional smoke detectors, ensuring accurate and reliable fire detection and supervision.

Where It Can Be Used

The IDP-MONITOR-2 is ideal for commercial buildings, industrial facilities, educational institutions, and healthcare environments that require multi-point fire monitoring and supervision. It’s particularly effective in applications involving waterflow and tamper switch monitoring, making it suitable for complex fire protection systems where reliability and addressable communication are essential.

IDP-MONITOR-2

The Farenhyt IDP-MONITOR-2 provides dual Class B supervised inputs that allow monitoring of two separate circuits simultaneously. Its fully supervised design ensures immediate fault detection, while rotary address switches simplify setup and configuration. The module’s compact design allows for easy installation in a standard 4-inch electrical box, and the panel-controlled LED provides clear visual status — flashing green during normal operation and solid red during alarm conditions.

Advantages

• Monitors two circuits with unique addresses
• Supports Class B supervised wiring
• Fully supervised for reliable operation
• Fast installation using rotary address switches
• Panel-controlled LED for clear status indication
• SEMS screws simplify wiring connections
• UL, CSFM, and MEA certified for compliance and safety

Areas We Serve

Fire Projects Pvt. Ltd. supplies, installs, and maintains Farenhyt IDP-MONITOR-2 Dual Monitor Modules across Gujarat, including Ahmedabad, Vadodara, Sanand, Vapi, Ankleshwar, and Dahej. We serve industries such as commercial complexes, petrochemicals, healthcare, IT parks, and manufacturing plants, ensuring complete fire safety coverage.

Why Choose Fire Projects Pvt. Ltd.?

At Fire Projects Pvt. Ltd., we deliver end-to-end fire detection and safety solutions powered by Farenhyt’s intelligent technology. From system design and installation to after-sales service, we ensure your fire alarm systems remain compliant, efficient, and future-ready.
