IFP-2100ECS Intelligent Fire Alarm Control Panel with Emergency Communication System

The Farenhyt IFP-2100ECS is an advanced intelligent addressable fire alarm control panel integrated with an Emergency Communication System (ECS). It provides comprehensive life safety management by combining fire detection, voice evacuation, and emergency messaging into one reliable platform. Designed for large and complex buildings, it ensures quick response, clear voice communication, and complete system integration during any fire or emergency event.

Where It Can Be Used

The IFP-2100ECS is ideal for large-scale commercial, industrial, and institutional facilities requiring combined fire alarm and emergency communication features.
It is commonly used in:

• High-rise buildings and corporate offices
• Hospitals and healthcare facilities
• Airports and transport hubs
• Educational institutions and universities
• Manufacturing plants and industrial complexes
• Shopping malls and public infrastructure projects

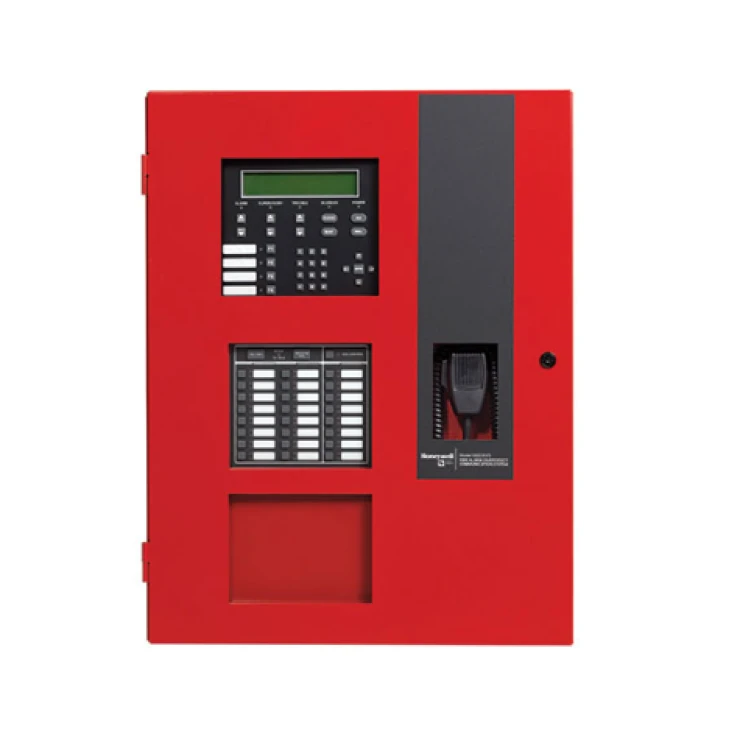

Farenhyt IFP-2100ECS

The IFP-2100ECS offers intelligent addressable fire protection with integrated voice evacuation capability. It supports one built-in Signaling Line Circuit (SLC), expandable up to 2,100 addressable points (IDP/SK) or 2,032 (SD).
The system features eight Flexput® circuits, a supervised onboard microphone, and programmable message buttons that allow emergency personnel to broadcast real-time or pre-recorded alerts across selected zones.

Its built-in dual DACT communicator (IP and POTS) transmits alarms and system updates to a central station, with optional cellular backup for continuous monitoring. The IFP-2100ECS simplifies setup through JumpStart® auto programming and provides USB-based configuration via the Honeywell Fire Software Suite (HFSS).
Multiple panels can be networked—up to 32 sites—for unified communication, making it fully compliant with UL 2572 for mass notification systems.

Advantages

• Combines fire alarm and emergency voice system in one enclosure
• Supports 15 customizable one-minute message recordings
• Integrated voice evacuation with priority message control
• Expandable capacity up to 2,100 addressable points
• Dual communication via IP and POTS (optional cellular backup)
• JumpStart® auto programming for faster installation
• Field-upgradeable firmware for long-term flexibility
• Supports multiple notification patterns and sync options
• Compatible with System Sensor®, Gentex®, Wheelock®, and Amseco® devices
• Real-time clock with 1,000-event history storage

Areas We Serve

Fire Projects Pvt. Ltd. proudly installs and commissions Honeywell Farenhyt IFP-2100ECS systems across Gujarat — including Ahmedabad, Vadodara, Sanand, Vapi, Halol, Ankleshwar, and Dahej.
We serve diverse industries such as commercial offices, healthcare, petrochemical plants, IT parks, logistics hubs, and educational institutions.

Why Choose Fire Projects Pvt. Ltd.?

At Fire Projects Pvt. Ltd., we provide complete fire detection and life safety solutions using certified Honeywell Farenhyt systems. From design and installation to testing and annual maintenance, our expert team ensures your building meets NFPA and local fire code standards.
 Call: +91 98244 42333 | Email: info@fireprojects.co.in
