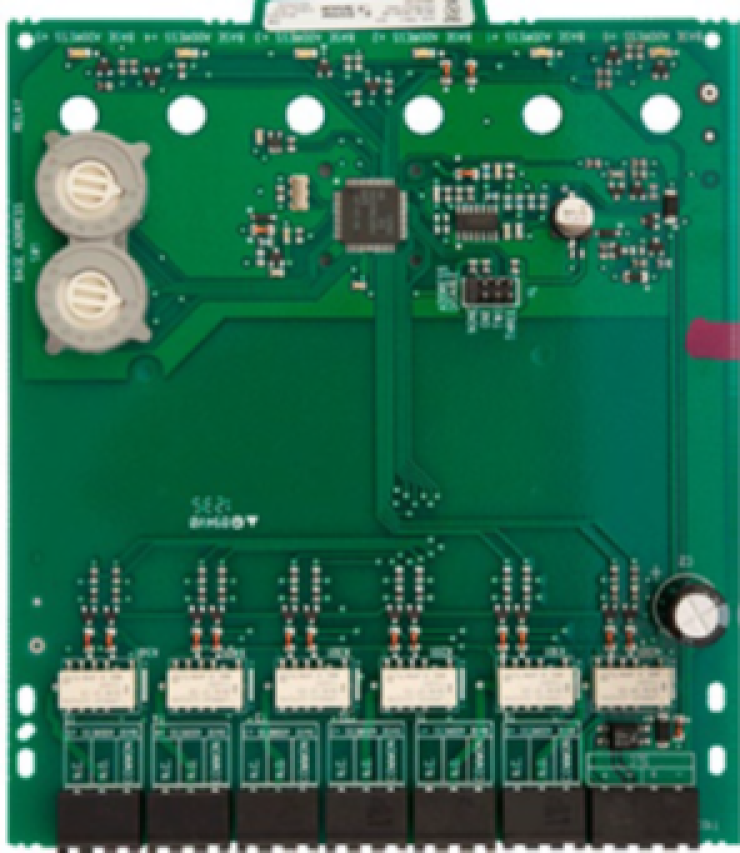

Farenhyt IDP-RELAY-6 Addressable Relay Module

The Farenhyt IDP-RELAY-6 is an addressable relay module designed to provide flexible control functions within Farenhyt fire alarm systems. Equipped with six independent Form C relay contacts, it allows Fire Alarm Control Panels (FACPs) to switch multiple circuits or external devices through code commands. Ideal for automation and control applications, it delivers reliable performance and seamless panel integration.

Where It Can Be Used

The IDP-RELAY-6 module is widely used in commercial, industrial, and institutional environments that require automatic control of external systems such as HVAC shutdown, elevator recall, door release, or power supply activation during alarm conditions.
It fits perfectly in new or retrofit installations across hospitals, manufacturing units, data centers, and office buildings where programmable relay outputs are needed.

Farenhyt IDP-RELAY-6 Addressable Relay Module

The Farenhyt IDP-RELAY-6 provides six Form C relay outputs, each with its own LED status indicator. The relay functions are fully programmable through the Farenhyt FACP and can be mapped to individual zones or system conditions.
The module supports Class A or Class B operation, mounts easily inside the IDP-ACB cabinet, and can be installed in pairs for higher output capacity. Up to three unused relay positions can be disabled when not required. With rotary address switches for quick setup and plug-in terminal blocks for simple wiring, it ensures easy installation and maintenance.

Advantages

• Six independent Form C contacts for flexible control
• Compact modular design — two modules mount in IDP-ACB cabinet
• Removable plug-in terminal blocks (12–18 AWG)
• Rotary address switches for fast setup
• Individual LED indicator for each relay output
• Class A or B operation modes
• Fully programmable relay mapping
• Mounting hardware included
• UL Listed, CSFM Listed, MEA Listed (386-02-E Vol. II)
• Compatible with all Farenhyt addressable panels

Areas We Serve

Fire Projects Pvt. Ltd. installs and commissions Farenhyt IDP-RELAY-6 modules across Gujarat, covering Ahmedabad, Vadodara, Halol, Sanand, Vapi, Ankleshwar, and Dahej.
We cater to sectors such as healthcare, manufacturing, petrochemicals, commercial complexes, IT facilities, and educational campuses.
