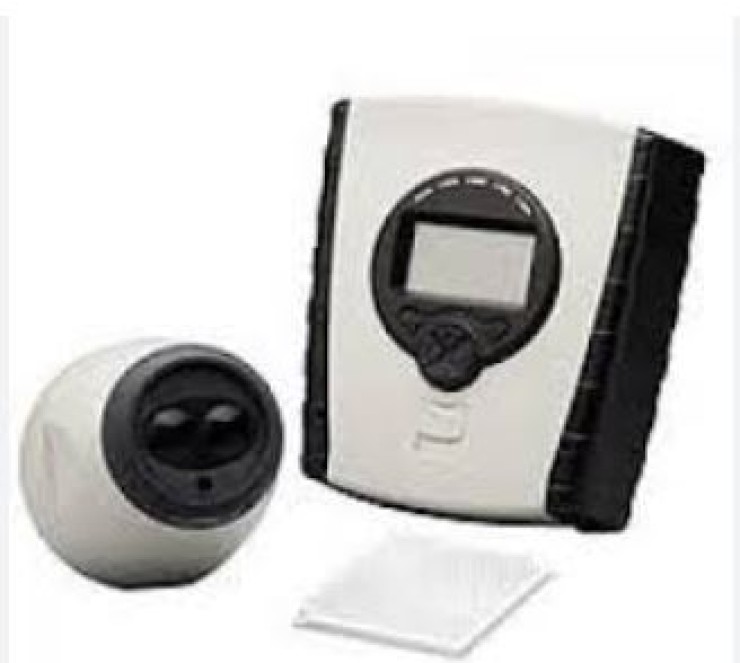

Edwards EC5000R Reflective Beam Smoke Detector

The Edwards EC5000R Reflective Beam Smoke Detector is designed to provide reliable smoke detection in large, open areas where traditional spot-type detectors are not practical. It uses an infrared beam projected across the protected space, with smoke density reducing the returned signal to trigger an alarm. With built-in auto-alignment, laser-assisted setup, and advanced compensation features, it ensures accurate performance and minimal false alarms.

Where It Can Be Used?

This detector is ideally suited for wide and open environments where ceiling-mounted point detectors may be difficult or costly to install. Common applications include warehouses, industrial plants, hotel atriums, auditoriums, airports, shopping malls, and school gymnasiums. Its long-range detection capability (up to 330 feet) makes it perfect for protecting expansive spaces while reducing wiring and installation requirements.

EC5000R Reflective Beam Smoke Detector
The EC5000R combines a transmitter and receiver into a single unit, working with a reflector positioned opposite the detector. The unit projects an invisible infrared beam, and when smoke interrupts the beam path, it reduces the light intensity received, which is then analyzed to determine alarm conditions.
The system includes a ground-level controller with an LCD display for easy testing and maintenance, supports up to two detector heads, and incorporates automatic alignment and compensation for building movement or contamination. This intelligent design ensures long-term reliability, flexibility, and simplified servicing.

Advantages

• Covers long distances (26.25 ft. to 330 ft.) with fewer devices required
• Laser-assisted prism mounting reduces installation time
• Auto-alignment ensures reliable beam performance
• Ground-level controller simplifies maintenance and testing
• Contamination and building shift compensation minimize nuisance alarms
• Programmable fire thresholds for different applications
• Separate alarm and trouble contacts for flexible integration
• Built-in UL/ULC obscuration fire test feature

Areas We Serve

At Fire Projects Pvt. Ltd., we provide expert supply, installation, and commissioning of Edwards EC5000R Reflective Beam Smoke Detectors across Gujarat. Our services cover key industrial and commercial hubs, including Ahmedabad, Vadodara, Sanand, Halol, Vapi, Ankleshwar, Dahej, and beyond. We support diverse sectors such as manufacturing, petrochemicals, IT parks, healthcare, education, and large commercial complexes.

Why Choose Fire Projects Pvt Ltd.?

We are a trusted partner for end-to-end fire detection and life safety solutions. From system design and product selection to professional installation and after-sales service, we ensure your premises remain fully compliant and secure. Backed by global Edwards technology, we guarantee reliability and efficiency in every project.
